Overview

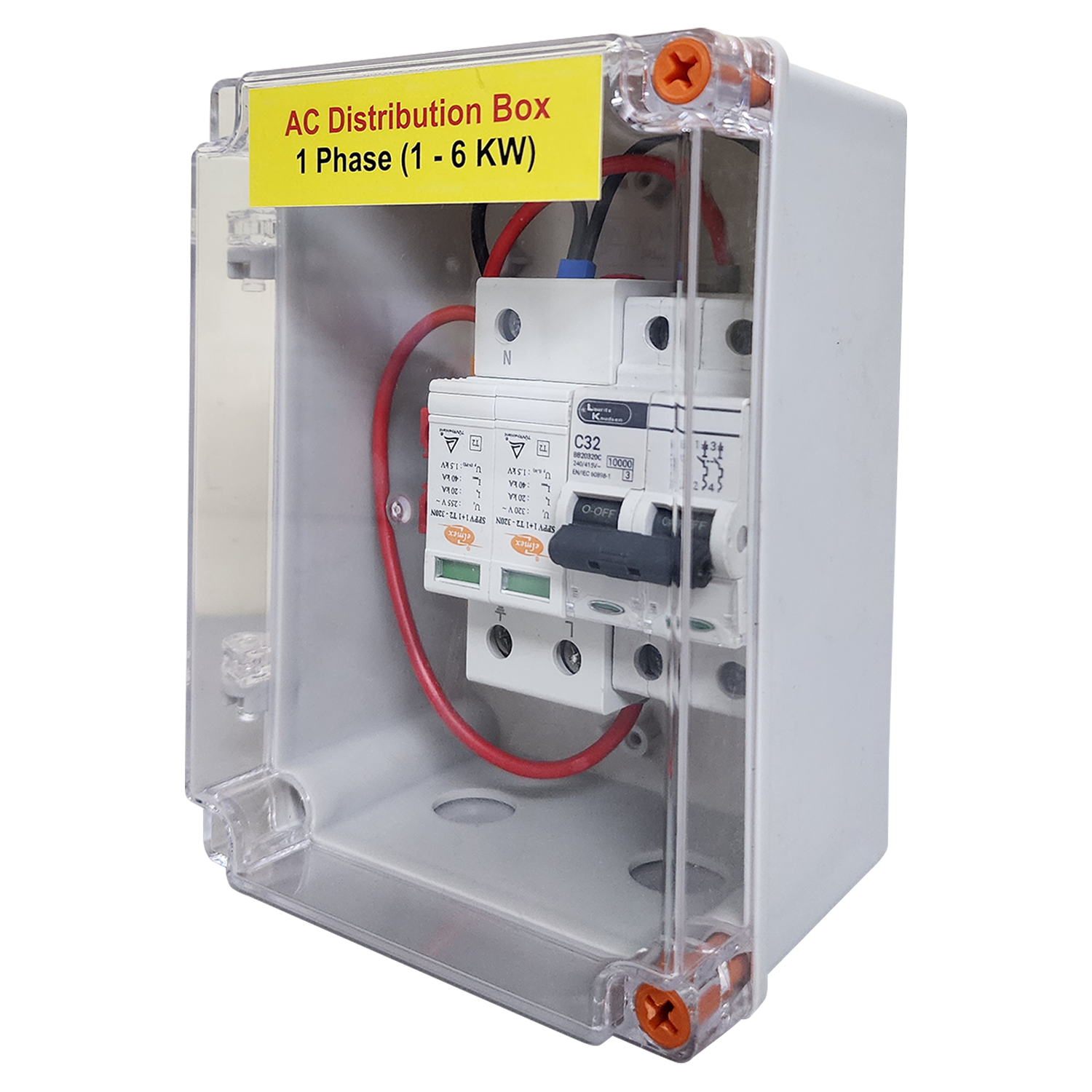

The AC Distribution Board (ACDB) is a crucial component in any solar power setup, responsible for managing the distribution of AC power generated by the inverter. After the inverter converts DC electricity from solar panels into usable AC power, the ACDB ensures that this power is safely and efficiently delivered to the connected loads or fed into the grid.
Application of ACDB
Used to handle large volumes of AC power output from central inverters in utility-scale solar farms.
Controls and routes AC power from rooftop or ground-mounted inverters to building loads or grid connections.
Distributes AC output to machinery and equipment in industrial setups, ensuring synchronization with existing power infrastructure.
In standalone solar solutions, the ACDB regulates AC power supply to meet local electrical demands.
In home solar systems, it connects inverter output to the household AC system with proper protection mechanisms.
Advantages of ACDB
Energy Savings
VFD panels enable precise control of motor speed, allowing for energy-efficient operation by matching motor speed to the actual load requirements.
Reduced Mechanical Stress
Controlling the speed of motors with VFDs reduces mechanical stress and wear, extending the lifespan of the motor and associated equipment.
Soft Start and Stop
VFDs provide smooth and controlled acceleration and deceleration of motors, reducing electrical and mechanical stress during start-up and shutdown.
Process Control
VFD panels offer precise control over motor speed, enabling better control of industrial processes and improving overall system performance.
