Overview

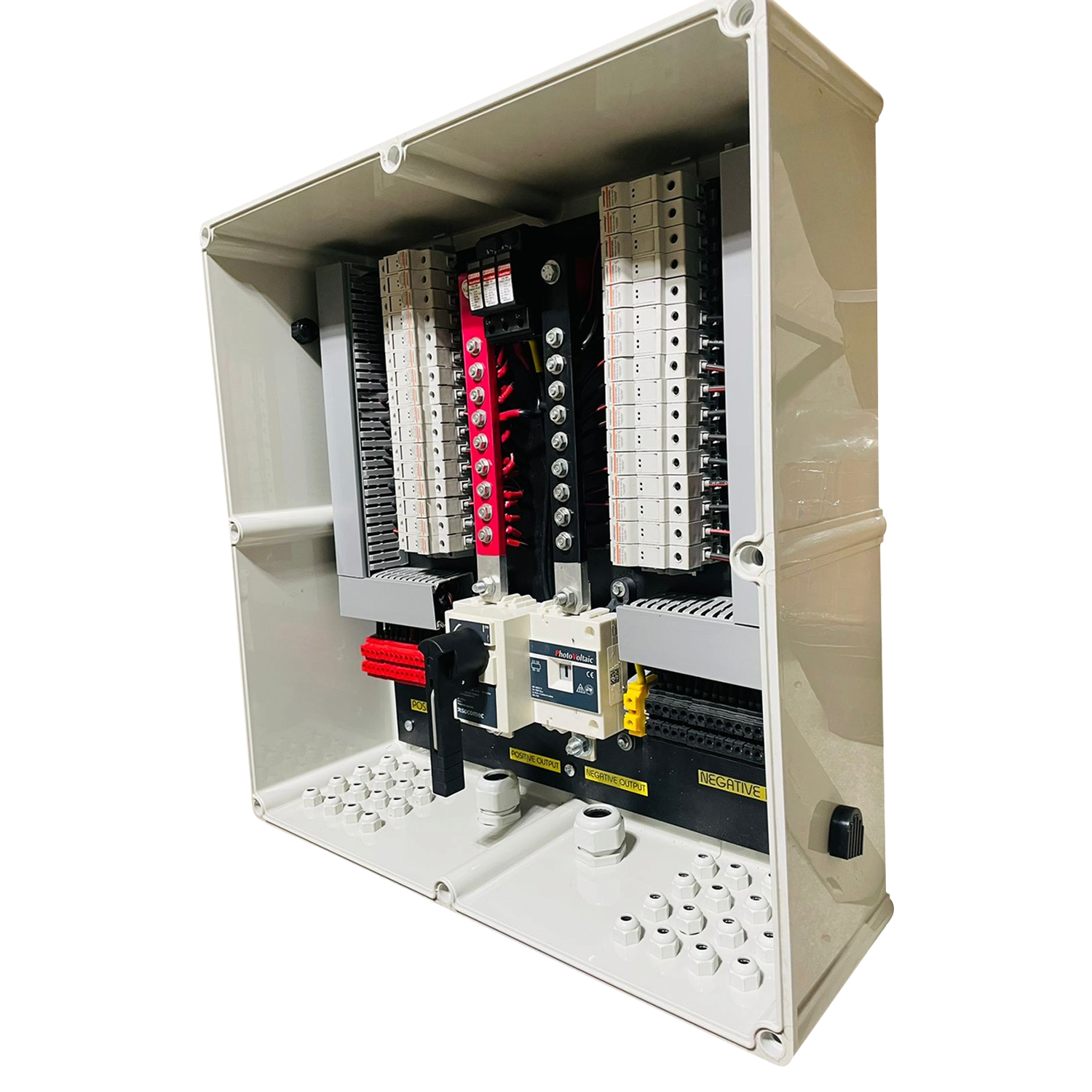

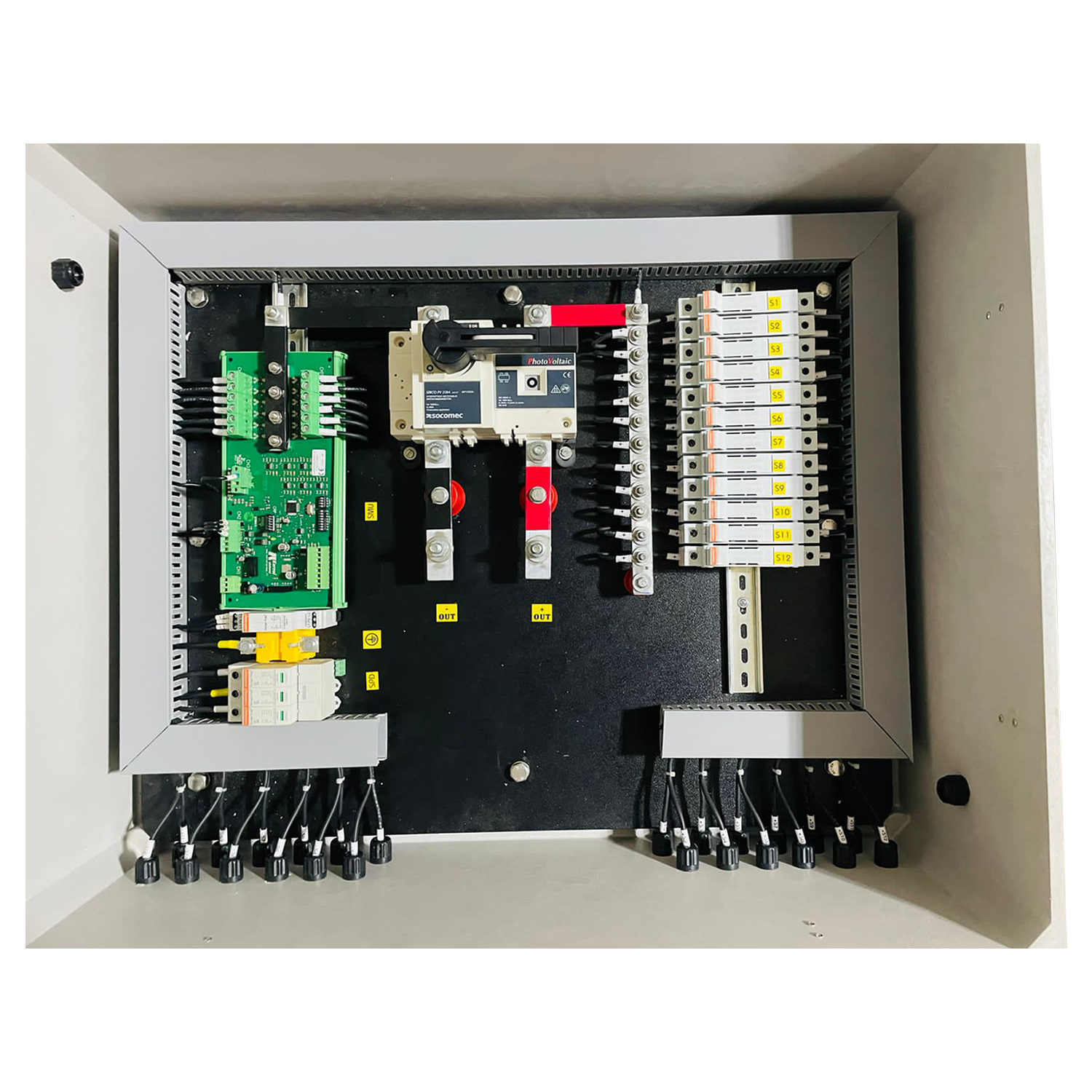

The String Monitoring Box (SMB) is an advanced monitoring solution designed to track and optimize the performance of individual PV strings in rooftop and ground-mounted solar installations. By offering real-time data, fault detection, and protection features, the SMB enhances system reliability, improves maintenance efficiency, and supports long-term performance analysis.
Application of SMB(String Monitoring Box)/SCB(String Combiner Box - 1500V)
SMB/SCBs are essential for efficiently managing and optimizing power output across expansive solar farms. They provide real-time monitoring, intelligent fault detection, and robust protection, ensuring reliable energy transmission to the grid from thousands of panels.
In business and industrial environments, these boxes maximize energy harvest and ensure consistent system uptime for rooftop or ground-mounted solar installations. They provide critical data for operational efficiency, minimize disruptions through proactive fault detection, and safeguard valuable electrical assets.
When integrating solar into localized microgrids, SMB/SCBs offer precise monitoring and control capabilities. This enables seamless energy balancing, enhances resilience, and optimizes the overall performance of both standalone and grid-connected microgrid systems.
Advantages
Real-Time Monitoring
Continuously measures voltage, current, and power output of each PV string to ensure maximum energy harvest and system uptime.
Intelligent Fault Detection
Detects issues such as shading effects, module-level faults, wiring errors, and imbalances across strings, enabling proactive maintenance.
User-Friendly Interface
Features onboard displays and controls for on-site diagnostics, along with mobile and web app access for remote performance monitoring.
Data Logging & Analysis
Records and stores historical performance data, supporting detailed analysis and long-term performance reporting.
System Protection
Built-in safety mechanisms including overvoltage protection, fuses, and surge arrestors safeguard the system from electrical damage.
Versatile Communication Options
Supports both wired (RS485, Ethernet) and wireless (Wi-Fi, Zigbee) interfaces for seamless integration with data loggers and monitoring systems.
Software Integration
Compatible with leading solar monitoring platforms, allowing centralized management and deeper insights into system health and performance.
Scalable Architecture
Easily adaptable for system expansion, suitable for installations ranging from small rooftops to large-scale solar farms.
